Loading data from an on-premises data source to Azure Data Lake Storage (ADLS) using Azure Data Factory (ADF) involves the following steps. The key component for connecting on-premises data sources is the Self-Hosted Integration Runtime (SHIR).

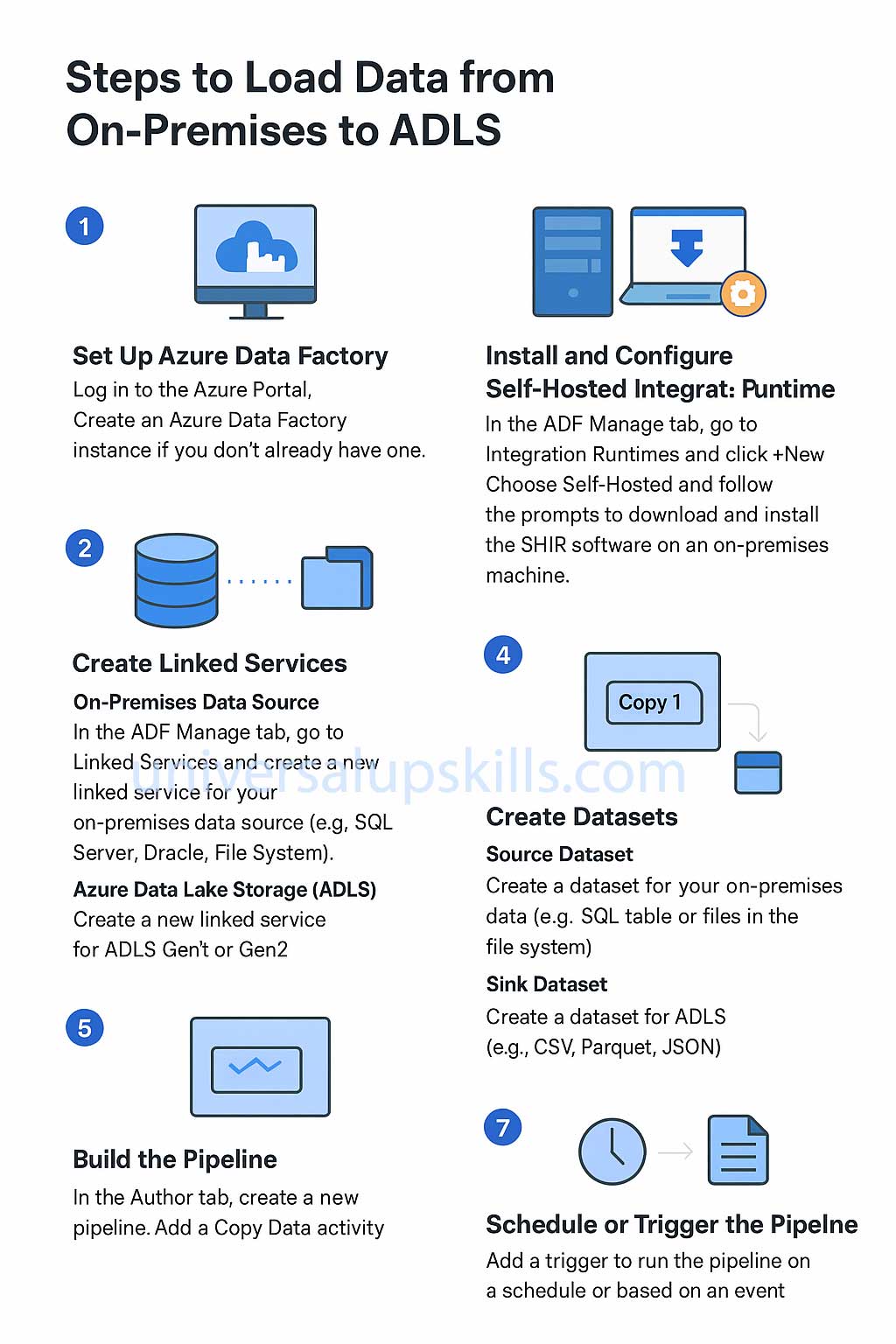

universalupskills-ADLS

Steps to

Load Data from On-Premises to ADLS

1. Set Up Azure Data Factory

  • Log in to the Azure Portal.
  • Create an Azure Data Factory instance if you don’t already have one.

2. Install and Configure the Self-Hosted Integration Runtime

The SHIR enables ADF to access on-premises data sources securely.

  • In the ADF Manage tab, go to Integration Runtimes and click + New.
  • Choose Self-Hosted and follow the prompts to download and install the SHIR software on an on-premises machine.
  • During installation:
    • Copy the authentication key from ADF and paste it into the SHIR setup wizard.
    • Configure the SHIR to run under an account with access to the on-premises data.
  • Once installed, ensure the SHIR status shows as Online in ADF.

3. Create Linked Services

Linked Services define the connections to your data sources and sinks.

  1. On-Premises Data Source:
    • In the ADF Manage tab, go to Linked Services and create a new linked service for your on-premises data source (e.g., SQL Server, Oracle, File System).
    • Choose the corresponding connector, e.g., Azure SQL Server or File System, and configure:
      • Server Name (for databases).
      • Authentication: Provide credentials.
      • Integration Runtime: Select the Self-Hosted Integration Runtime.
  2. Azure Data Lake Storage (ADLS):
    • Create a new linked service for ADLS Gen1 or Gen2.
    • Provide the Storage Account Name and select the appropriate authentication method (e.g., Managed Identity, Service Principal).

4. Create Datasets

Datasets represent the data structure of the source and sink.

  • Source Dataset:
    • Create a dataset for your on-premises data (e.g., SQL table or files in the file system).
    • Point it to the linked service for your on-premises data source.
  • Sink Dataset:
    • Create a dataset for ADLS (e.g., CSV, Parquet, JSON).
    • Point it to the linked service for ADLS.

5. Build the Pipeline

  1. In the Author tab, create a new pipeline.
  2. Add a Copy Data activity:
    • Source:
      • Select the on-premises dataset.
      • Optionally, specify filters or query parameters for databases.
    • Sink:
      • Select the ADLS dataset.
      • Configure file format settings (e.g., delimiter for CSV, folder structure).
  3. (Optional) Add transformations or mappings as needed.

6. Test the Pipeline

  • Debug the pipeline to test the data transfer.
  • Check the Monitor tab to verify successful execution or troubleshoot errors.

7. Schedule or Trigger the Pipeline

  • Add a trigger to run the pipeline on a schedule or based on an event.

Considerations

  1. Firewall Rules:
    • Ensure that the on-premises machine running the SHIR can access the internet.
    • Add firewall rules in Azure to allow SHIR communication.
  2. Authentication:
    • Use a Service Principal or Managed Identity for secure access to ADLS.
  3. Performance:
    • Optimize batch sizes and concurrency settings for large data transfers.
    • Use compression (e.g., gzip) for faster uploads.
  4. Monitoring:
    • Monitor data movement in the ADF Monitor tab.
    • Check SHIR performance logs if the connection fails.
